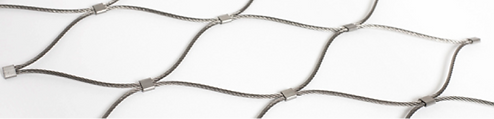

Ferruled FlexiMesh

Architectural Wire Rope Mesh AISI316

APERTURE (MM)

25 x 40

1.0mm

1.5mm

Weight kg/m2



Light Transmission %



MBL





PDF



0.760



89%



0.6kN

1.59



83%



1.27kN

30 x 50

1.0mm

1.5mm

Weight kg/m2



Light Transmission %



MBL





PDF



0.628



91%



0.6kN

1.250



89%



1.27kN

35 x 60

1.0mm

1.5mm

2.0mm

Weight kg/m2



Light Transmission %



MBL





PDF



0.532



92%



0.6kN

0.99



90%



1.27kN

2.870



83%



2.5kN

40 x 70

1.0mm

1.5mm

2.0mm

Weight kg/m2



Light Transmission %



MBL





PDF



0.428



93%



0.6kN

1.208



90%



1.5kN

2.236



85%



2.5kN

50 x 88

1.0mm

1.5mm

2.0mm

3.0mm

4.0mm

Weight kg/m2



Light Transmission %



MBL





PDF



1.600



88%



2.5kN

0.872



92%



1.27kN

0.319



95%



0.6kN

2.805



89%



5.7kN

4.736



80%



10.1kN

60 x 105

1.0mm

1.5mm

2.0mm

3.0mm

4.0mm

5.0mm

Weight kg/m2



Light Transmission %



MBL





PDF



0.256



96%



0.6kN

1.256



91%



2.5kN

0.688



93%



1.27kN

3.792



82%



10.1kN

2.236



87%



5.7kN

5.712



78%



15.9kN

70 x 120

1.0mm

1.5mm

2.0mm

3.0mm

4.0mm

5.0mm

Weight kg/m2



Light Transmission %



MBL





PDF



0.208



96%



0.6kN

1.804



89%



5.7kN

0.994



92%



2.5kN

3.076



85%



10.1kN

0.548



94%



1.27kN

4.662



80%



15.9kN

80 x 140

1.0mm

1.5mm

2.0mm

3.0mm

4.0mm

5.0mm

Weight kg/m2



Light Transmission %



MBL





PDF



0.177



97%



0.6kN

0.822



93%



2.5kN

0.456



95%



1.27kN

1.520



90%



5.7kN

2.604



86%



10.1kN

3.969



82%



15.9N

100 x 175

1.0mm

1.5mm

2.0mm

3.0mm

4.0mm

5.0mm

Weight kg/m2



Light Transmission %



MBL





PDF



0.633



95%



2.5kN

0.340



96%



1.27kN

0.141



98%



0.6kN

1.198



92%



5.7kN

2.066



88%



10.1kN

3.171



84%



15.9kN

120 x 210

1.0mm

1.5mm

2.0mm

3.0mm

4.0mm

5.0mm

Weight kg/m2



Light Transmission %



MBL





PDF



0.509



96%



2.5kN

0.116



98%



0.6kN

0.270



97%



1.27kN

1.690



90%



10.1kN

0.977



94%



5.7kN

2.604



86%



15.9kN

160 x 275

1.0mm

1.5mm

2.0mm

3.0mm

4.0mm

5.0mm

Weight kg/m2



Light Transmission %



MBL





PDF



0.363



97%



2.5kN

0.20



98%



1.27kN

0.085



99%



0.6kN

1.238



93%



10.1kN

0.718



95%



5.7kN

1.919



90%



15.9kN

180 x 310

1.0mm

1.5mm

2.0mm

3.0mm

4.0mm

5.0mm

Weight kg/m2



Light Transmission %



MBL





PDF



0.074



99%



0.6kN

1.068



95%



10.1kN

0.613



96%



5.7kN

0.176



98%



1.27kN

0.310



97%



2.5kN

1.659



92%



15.9kN

200 x 345

1.0mm

1.5mm

2.0mm

3.0mm

4.0mm

5.0mm

Weight kg/m2



Light Transmission %



MBL





PDF



0.062



99%



0.6kN

0.260



97%



2.5kN

0.518



96%



5.7kN

0.148



98%



1.27kN

0.904



95%



10.1kN

1.407



92%



15.9kN

WIRE ROPE

  • FlexiMesh is manufactured exclusively from  hamma™ wire rope

  • Recognised globally as the leading marine and architectural wire rope available

  • Manufactured by KOSWIRE in South Korea to ensure product integrity and longevity

  • AISI316 stainless steel provides the highest corrosion resistance available

  • Trust your next design project to FlexiMesh - the worlds leading stainless steel cable mesh system
